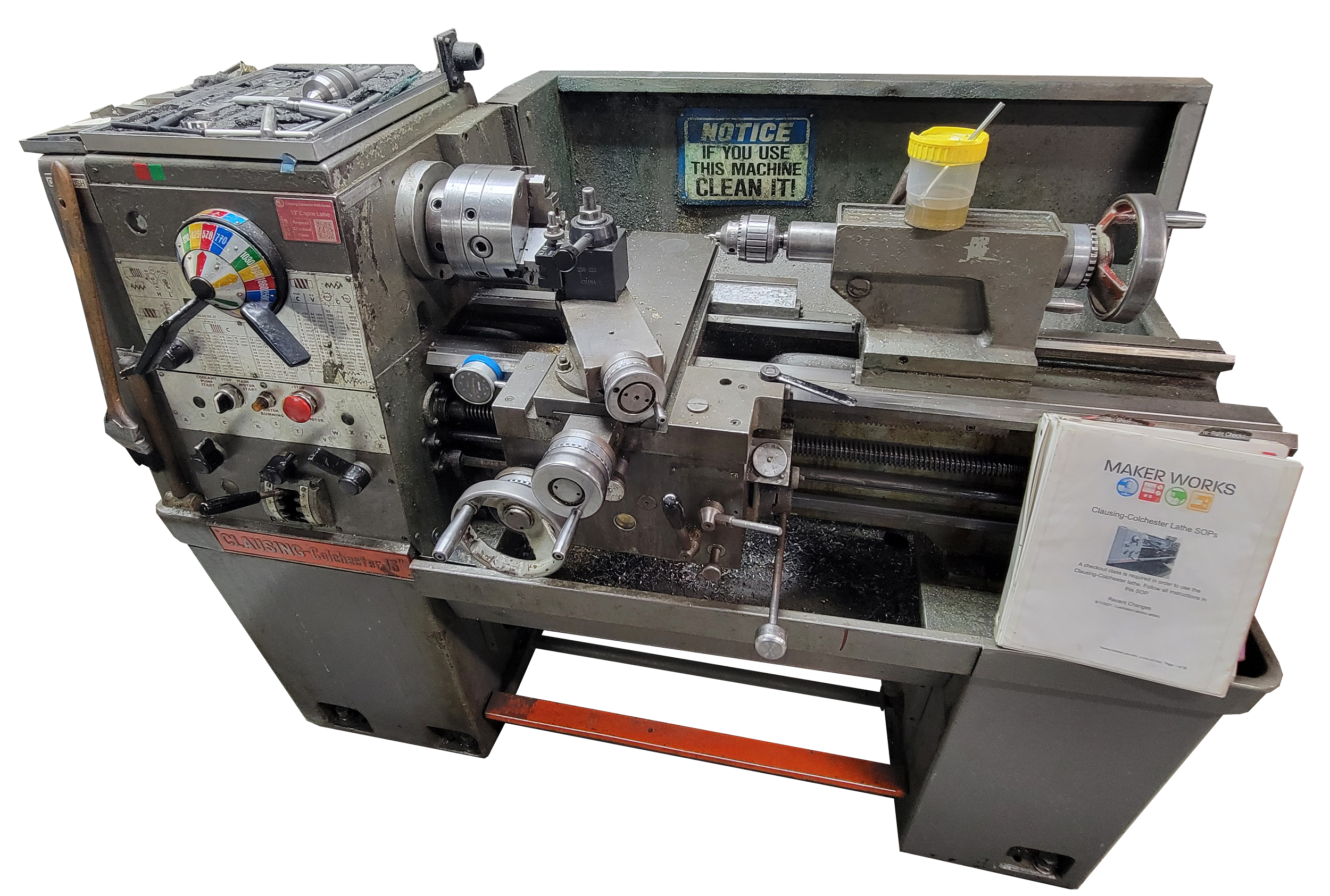

Clausing Colchester Engine Lathe

Manufacturer: Clausing Colchester
Model: Series 8000
Checkout Class Required

Detailed Specifications

Description:

The Clausing Colchester 8000 series 13″ engine lathe is a 5 HP lathe capable of precision work in metal and plastic.  It can be used with either a 3- or 4-jaw chuck and has an Aloris-style quick-change tool post (BXA size).

Use this calendar to reserve time on this tool.

Specifications:

Swing over bed    13.25″ (335mm)
Swing over cross-slide    8.25″ (210mm)
Distance between centers    25″
Motor    5 HP 3-phase
Spindle nose    D1-4 Camlock
Spindle taper    MT5
Spindle bore    1-5/8″ (40mm)
Spindle speed    30-2,500 RPM
Thread cutting    2-72 TPI
